Mantis Hardware

Overview and setup guide for the Mantis handheld data-collection rigs.

Mantis is a pair of handheld rigs for collecting Cartesian demonstrations without moving the robot. Each rig carries the same gripper Axol uses, with an analog trigger that drives the jaws proportionally and a mount for a pose tracker: a Meta Quest controller, a VIVE Tracker 3.0, or a VIVE Ultimate Tracker. A demonstrator holds one rig in each hand; the SDK tracks both, runs Axol’s IK against the rigs’ poses, and records the same dataset schema a robot-collected episode produces.

Mantis is a second device in the SDK next to Axol: it has its own settings, connection tile, and CAN interfaces, and the control panel’s Axol / Mantis selection decides which one every operation runs on. Teleoperation and data collection support Mantis; the other operations are Axol-only.

Overview

A Mantis kit consists of:

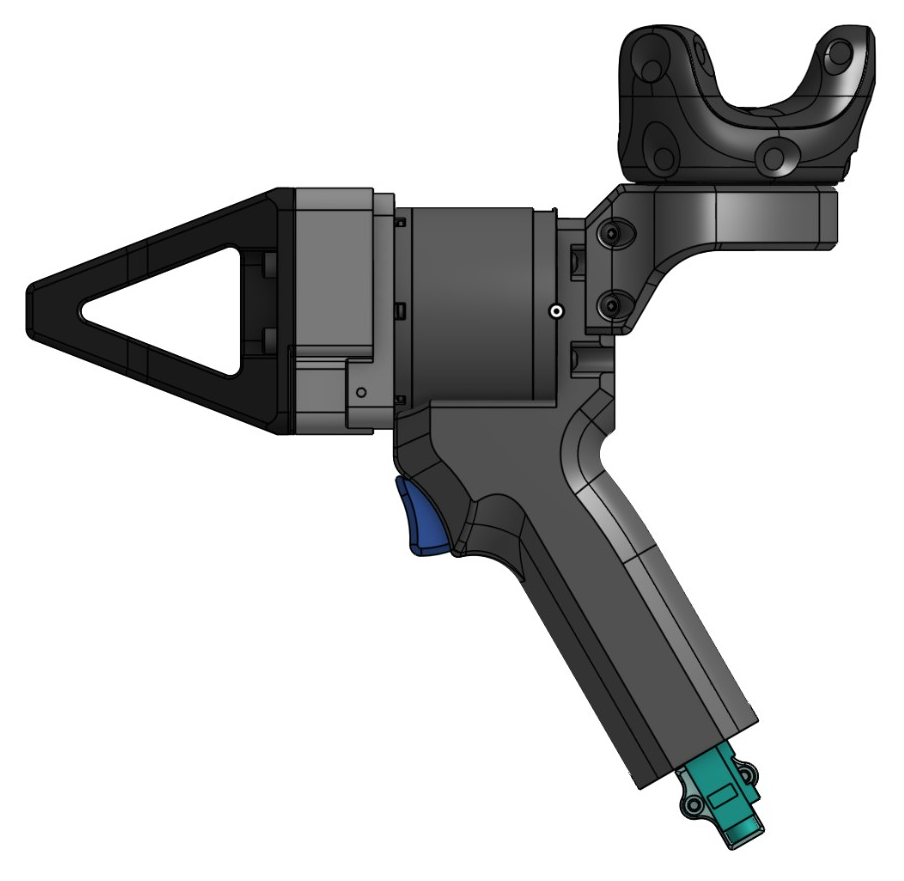

• 2× Mantis rigs, left and right. Each carries the same gripper as Axol, the trigger, and the tracker mount.
• 1× Mantis Hub, the link between the rigs and the host. L and R are etched on the case to mark the left and right gripper connections, an XT30(2+2) lead feeds out from each to plug into its rig, and a USB cable connects the hub to the ZED Box.
• A pose source, one of the three tracking systems described in Mantis Tracking: Quest controllers (no extra hardware), VIVE Tracker 3.0 with 1–4 SteamVR base stations, or VIVE Ultimate Trackers with their wireless dongle.
• Cameras: up to two wrist ZED cameras assigned to Left Mantis / Right Mantis, plus a head stereo camera assigned to Head, stored separately from the Axol camera layout. Data collection needs at least one camera recording.

Mantis has no arms. The arm joints in a recording are virtual, filled in from the IK solution, while the gripper is real and read from motor feedback. The trigger is analog: fully released is 0.0 (open), fully squeezed is 1.0 (closed). Its node learns the released position at power-on. If the reported value does not reach 1.0 when the trigger is physically fully squeezed, set that side’s full squeeze endpoint on the host as described below.

The grippers are driven by the same axol-rt realtime core as the robot’s arms (see Provision): for the duration of each take — and for a Mantis teleop run — the core owns the two gripper CAN interfaces and streams the POSITION_FORCE commands at 240 Hz, while Python only reads the triggers and trackers and hands it normalised targets. Between takes the grippers are torque-off and the core is stopped; the one-time open-stop calibration and the torque-off checks run from Python on the idle bus. The trigger reader’s receive-only socket shares each interface with the core (the kernel duplicates frames to every open socket, and the core ignores the trigger node’s ID).

Tracker mounts

The kit includes the mount for the pose source you purchased: Quest, Lighthouse (VIVE Tracker 3.0), or Ultimate. If you purchased Mantis without a tracker, print your own mount (see below).

Pose source	Mount	Tracker → gripper transform
Meta Quest controllers	The controller is rigidly mounted to the rig.	Built-in factory transform for Quest 3 (Touch Plus) controllers; other controller generations are measured (see Mantis Tracking).
VIVE Tracker 3.0 (Lighthouse)	Flat-back mount in the controller’s place.	Built-in factory transform; nothing to measure for the standard mount.
VIVE Ultimate Tracker	Same flat-back mount and orientation as Tracker 3.0.	Built-in factory transform (includes the 11 mm origin difference from Tracker 3.0).

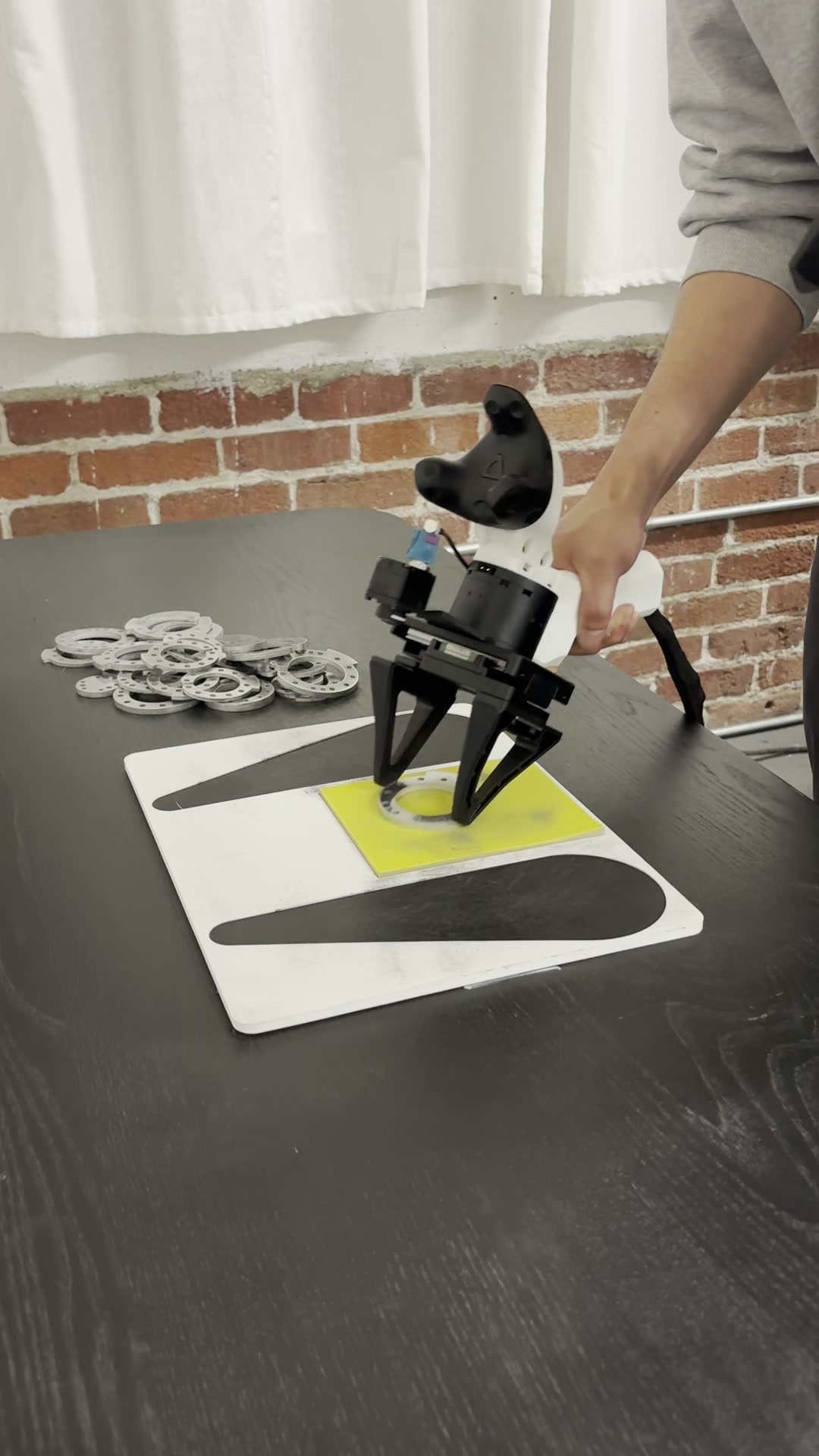

Fastening a VIVE tracker to its mount

Both VIVE trackers fasten to the flat-back mount the same way. You need:

• 1× 1/4”-20 × 1/2” screw, threaded into the tracker’s standard 1/4”-20 socket from below the mount.
• 1× mount pin (mantis_mount_pin.stl, a 5 mm × 10 mm 3D-printed pin). It sits in the locating hole next to the 1/4”-20 socket and stops the tracker rotating on the screw, which keeps the factory tracker → gripper transform valid.

Press the pin into the mount first, seat the tracker on it, then tighten the screw.

Printing your own mount

If you ordered Mantis without a tracker and are supplying your own, you can 3D-print the mount instead. Download the model for your pose source:

• Quest 3 controller mount, left and right (STL). The Touch controllers are mirror images, so print one of each.
• VIVE Tracker 3.0 mount (STEP)
• VIVE Ultimate Tracker mount (STEP)

Each mount attaches to the rig with M3×8 screws (McMaster-Carr 97763A813). For either VIVE tracker, print the mount pin alongside the mount and fasten the tracker with a 1/4”-20 × 1/2” screw as described above.

Installation

Setting up a Mantis kit on a host with the Axol SDK installed, with or without a robot.

Using Mantis without a robot

You don’t need an Axol robot to collect data with Mantis: the rigs, hub, and a pose source are a complete data-collection setup on their own. Besides the kit, you need a host machine. Mantis uses the same one-command install as Axol, on Linux with systemd. The cameras are ZED GMSL cameras and data collection needs at least one head or wrist camera recording, so the host must be an NVIDIA Jetson with GMSL inputs (such as a ZED Box); the grippers, triggers, and tracking alone work on any Linux machine.

On a host where Mantis is the only hardware attached, the control panel identifies and connects it automatically, and with Mantis selected on its tile the panel offers exactly the two operations Mantis supports: Teleoperation (the grippers-only trigger check, no tracking) and Data collection. The Axol-only operations stay hidden.

The setup path on a Mantis-only host is the rest of this page, unchanged:

1. Install the SDK on the host.
2. Connect the hub and let the panel identify the CAN interfaces.
3. Select and connect Mantis and confirm the side mapping.
4. Run the grippers-only teleop check.
5. Mount and assign the wrist cameras.
6. Set up the pose source in Mantis Tracking, then collect data.

Mantis episodes are standard LeRobot datasets with the same schema a robot-collected episode produces, so a policy trained on them can be deployed on an Axol elsewhere.

Connecting the hub

1. Cable the rigs to the hub

   L and R are etched on the hub’s case to mark the left and right gripper connections; an XT30(2+2) lead feeds out from each: plug the left rig into L and the right rig into R. The mapping is logical and can be swapped in software later, but wiring it this way matches the defaults so nothing needs to change.

2. Connect the hub to the ZED Box

   Plug the USB cable from the Mantis Hub into the ZED Box (this is how the host communicates with the grippers) and power both rigs. The host discovers the hub alongside the Axol Hub: it works out which side is which rig, assigns the persistent left/right interface names, and installs a udev rule and hotplug unit so a replug brings the interfaces back up on its own.

3. Let the control panel identify it

   Open the control panel and connect the Axol Host. When the panel comes online it inventories the host’s CAN interfaces; a new hub that still shows as anonymous can0 / can1 is identified automatically as long as the rigs are powered. If the probe cannot prove the role (unpowered rig, ambiguous hub), power the hardware and press Connect or Retry CAN identification, or run axol can.setup in a terminal as the interactive fallback.

axol can.setup is a disruptive link reset for every attached adapter (Axol arms, Jelly, and Mantis pair), so run it while nothing is driving the robot.

Selecting and connecting Mantis

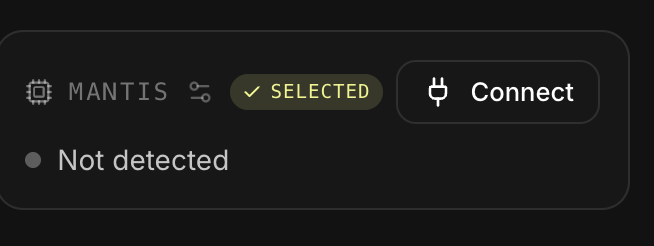

1. Select Mantis

   Press Select on the Mantis tile. This is the system-wide device choice: teleoperation and data collection now run on the rigs, the idle link auto-connects to them, and the Axol-only operations are hidden until Axol is selected again. The selection is stored with the host’s shared settings, so every operator sees the same choice.


2. Connect

   With Mantis selected and detected, the panel connects it automatically; otherwise press Connect on the tile. The tile then shows the two grippers’ CAN health at 1 Hz: a red square is an unreachable or faulted gripper and blocks Mantis operations until fixed.

3. Check the side mapping

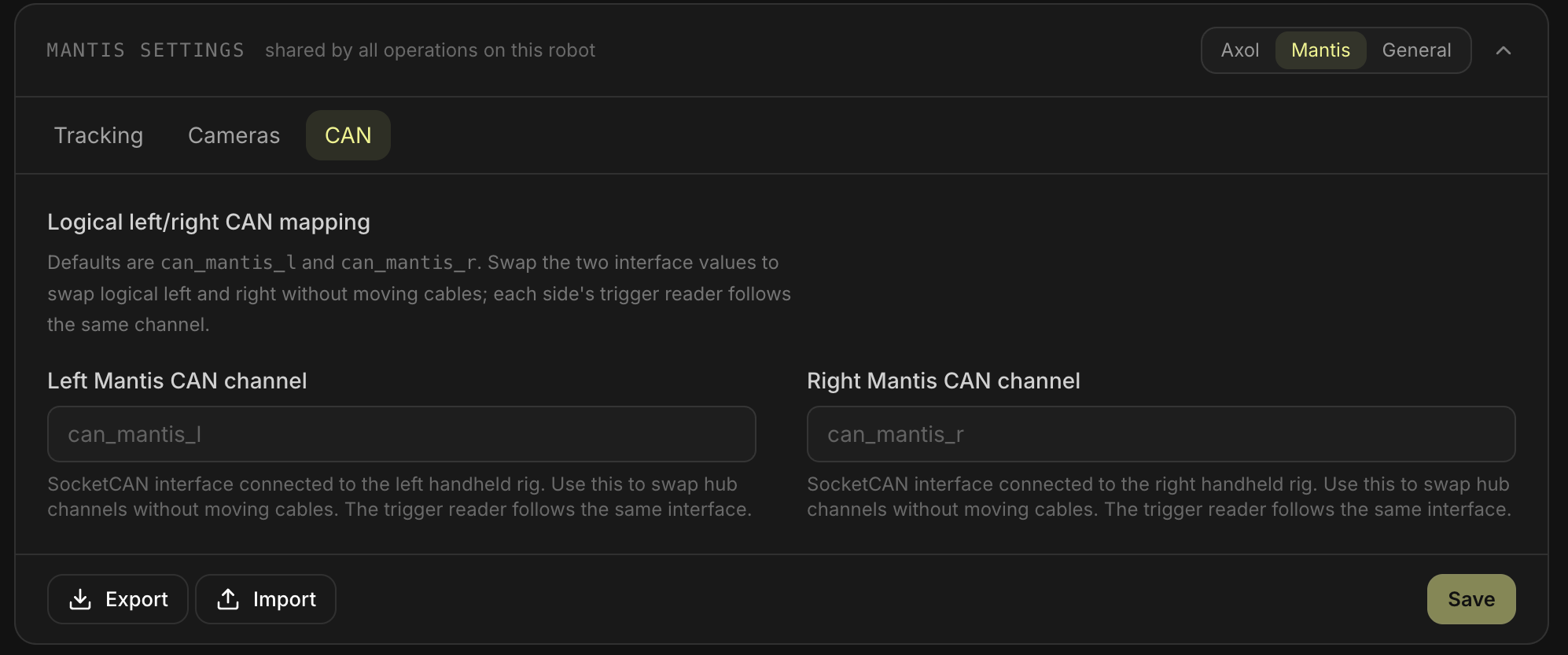

   Click the Mantis tile’s title to open Mantis settings, then CAN. The left and right fields must be non-empty and different (defaults can_mantis_l / can_mantis_r). If squeezing the physical left trigger moves the reported right input, swap the two values, save, and reconnect; the gripper and its trigger reader move together, so no cables need to change.



Testing the triggers and grippers

Before setting up cameras or tracking, prove that each trigger drives its own gripper. Mantis teleop is exactly this check: it needs only CAN and never uses tracking, cameras, headset, or transforms. With Mantis selected, pick Teleoperation and press Start, and the run drives the grippers straight from the rig triggers. (Tracked Mantis runs belong to data collection, once Mantis Tracking is set up.) From the CLI:

axol teleop --mantis

Keep hands and objects clear: once both triggers read live and released, each gripper opens fully to find its hard stop, then squeezing a trigger closes its matching gripper proportionally. Stop / Ctrl-C disables both grippers, and a lost trigger stream stops the run rather than holding a stale command.

If one gripper follows its trigger but leaves a gap at full squeeze, check the trigger endpoint before changing motor torque. Open Mantis settings → Triggers, lower Left trigger full squeeze or Right trigger full squeeze from its default of 1.0, then save. The allowed range is 0.50–1.00. If you have repeated full-squeeze readings, choose an endpoint just below the lowest repeatable reading; for example, set the left endpoint to 0.90 for readings around 0.91–0.94, and leave the right at 1.0 if it already closes fully. Otherwise, lower the affected side in small steps until the jaws close at the end of the trigger’s travel. The host maps that endpoint to a full close command and clamps values above it; the released position stays at open. This setting applies to the rig triggers used by Mantis teleop and Lighthouse/Ultimate collection, not to Quest controller triggers.

Stop and restart Teleoperation after saving, then fully squeeze each trigger once and compare jaw closure. A setting that is too low makes the jaws reach full close before the trigger finishes moving; raise it if that happens. Once both sides close as expected, start Collect data from the panel and check one short take before recording the rest. If the left jaw still has a gap when its commanded grip reaches full close, inspect the gripper’s jaws, linkage, and motor calibration rather than reducing the trigger endpoint further.

Mounting the cameras

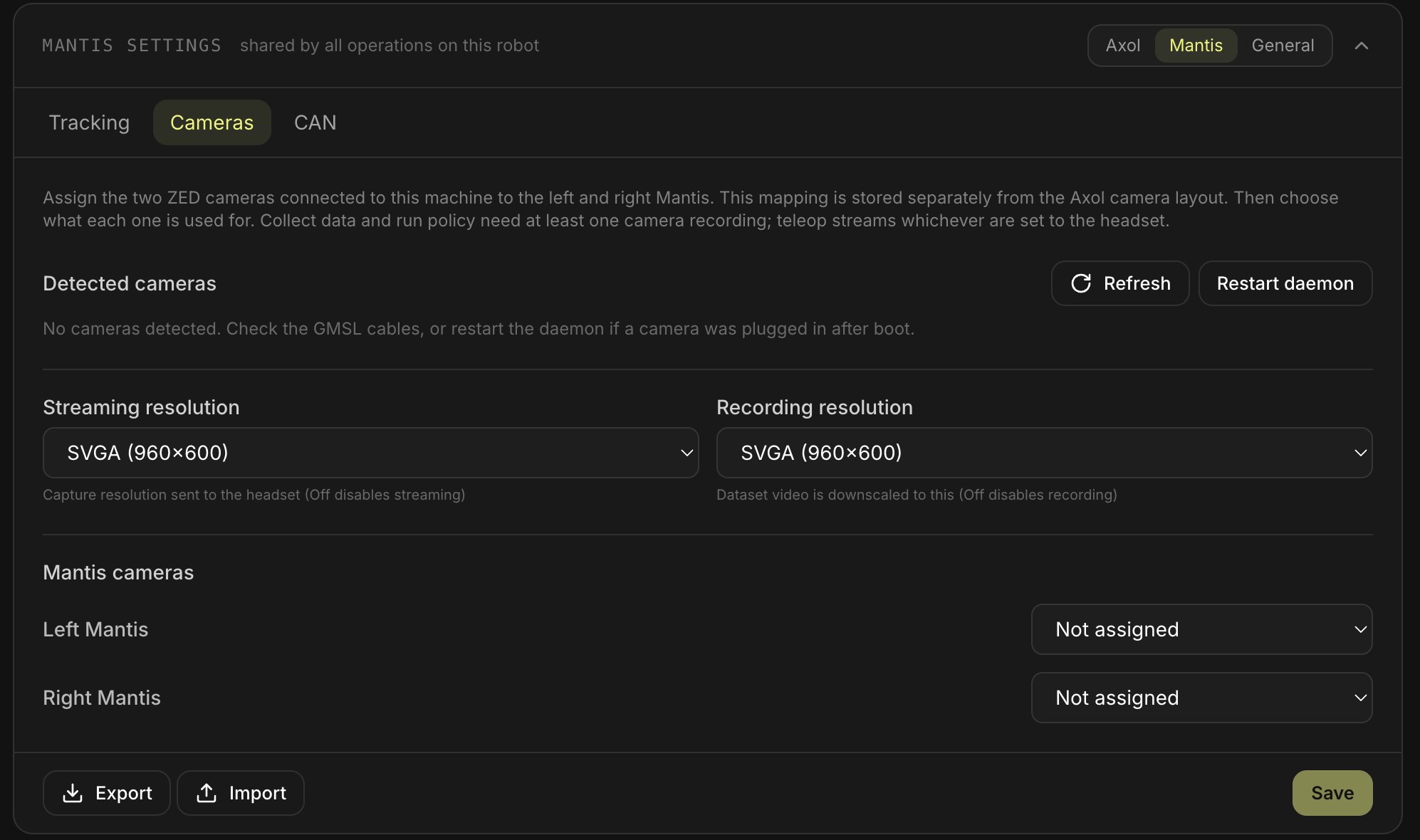

Mantis can record both wrist cameras and the head stereo camera together. Mount up to two ZED cameras on the rigs (mounting is the same as on the Axol gripper) and connect each camera, including the head camera, to the ZED Box with its GMSL2 cable. Note each camera’s serial (QR code on the back), then assign them under Mantis settings → Cameras as Head / Left Mantis / Right Mantis. The Mantis layout is stored separately from Axol’s overhead / left arm / right arm layout, so changing one never overwrites the other. The Head slot uses the dataset’s overhead name; enable both Record eyes to capture overhead_left and overhead_right alongside the wrists. At least one head or wrist camera must have Record enabled before data collection can start; see Cameras for the stream/record controls.
